Fiber Glass Machines

Name: Fiber Glass Machines
Brand: CHINA BEIHIA
Price: 8.00 USD

Wholesale Fiber Glass Machines from china suppliers

Application : Bar, Wire, PIPE, Sheet, Plates, Filament, GRP tank,wind power,chemical industry,building applications

Plastic Processed : PE, PP, PVC, PA

Condition : New

Screw Design : Double-screw

Twin Screw Type : Counter-rotating conical Twin-screw

Screw Material : 38CrMoALA

Screw diameter (mm) : Unapplicable

Screw L/D Ratio : Unapplicable

Screw Speed (rpm) : 300 rpm

Showroom Location : None

Place of Origin : Jiangxi, China

Brand Name : CHINA BEIHIA

Voltage : 380V

Dimension(L*W*H) : BASED

Power (kW) : 220

Weight : 2-10T

Warranty : 1 Year

Key Selling Points : Multifunctional

Applicable Industries : Hotels, Building Material Shops, Farms, Food Shop

Marketing Type : New Product 2020

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 3 years

Core Components : Bearing, Motor

After-sales Service Provided : Engineers available to service machinery overseas, Free spare parts, Online support

Automatic Grade : Automatic

Material : 100% Fiberglass

Thickness : 1~30mm

Certification : DNV & Lloyd's, ISO

Type : 3D Fiberglass Fabric

Product name : A Class 3D Fiberglass Woven Fabric for Double walled tank

Keyword : Fiber Glass Fabric

After Warranty Service : Online support, Spare parts

Local Service Location : None

Packaging Details : polybag+carton+pallet

Port : Shanghai

Supply Ability : 10000 Square Meter/Square Meters per Month 3D Double Walled Fabric for GRP tank

MOQ : 100 Square Meters

Price : $8.00/Square Meters >=100 Square Meters

Contact Now

Fiber glass machines

Product List

Product Type
3D Fiberglass Woven Fabric	3D Fabric Composited Sandwich Panels
3D GRP Reinforced Foam Cement Board	3D GRP Foam Concrete Sandwich Panel

DESCRIPTION

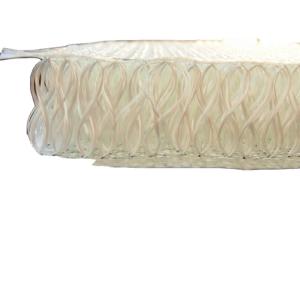

3-D spacer fabric construction is a newly developed concept. The fabric surfaces are strongly connected to each other by the vertical pile fibers which are interwoven with the skins. Therefore, the 3-D spacer fabric can provide good skin-core debonding resistance, excellent durability and superior integrity. In addition, the interstitial space of the construction can be filled up with foams to provide synergistic support with vertical piles.

Product Characteristics:

The 3-D spacer fabric consists of two bi-directional woven fabric surfaces, which are mechanically connected with vertical woven piles. And two S-shaped piles combine to form a pillar, 8-shaped in the warp direction and 1-shaped in the weft direction.

The 3-D spacer fabric can be made of glass fiber, carbon fiber or basalt fiber. Also their hybrid fabrics can be produced.

The range of the pillar height:3-50 mm, the range of the width:≤3000 mm.

The designs of structure parameters including the areal density, the height and distribution density of the pillars are flexible.

The 3-D spacer fabric composites can provide high skin-core debonding resistance and impact resistance and impact resistance, light weight. high stiffness, excellent thermal insulation, acoustic damping, and so on.

3D Fiberglass including 3D Fiberglass Woven Fabric, 3D fabric composited sandwich Panels, 3D GRP reinforced foam cement board, 3D GRP foam concrete sandwich panel.

Get Sample & Quotation

Fiber Glass Machines

PRODUCT SPECIFICATION

Area Weight (g/m2)	Core Thickness (mm)	Density of Warp (ends/cm)	Density of Weft (ends/cm)	Tensile strength Warp (n/50mm)	Tensile strength Weft (n/50mm)
740	2	18	12	4500	7600
800	4	18	10	4800	8400
900	6	15	10	5500	9400
1050	8	15	8	6000	10000
1480	10	15	8	6800	12000
1550	12	15	7	7200	12000
1650	15	12	6	7200	13000
1800	18	12	5	7400	13000
2000	20	9	4	7800	14000
2200	25	9	4	8200	15000
2350	30	9	4	8300	16000

RELATED CATEGORIES

View Related Categories

3D Fiberglass Woven Fabric

Fiberglass Direct Roving

Fiberglass Assembled Roving

AR Fiberglass Roving

Fiberglass Chopped Strands for Thermoplastics

Fiberglass Chopped Strands for BMC

Milled Fiberglass Powder

Fiberglass Stitched Combo Mat

Fiberglass Chopped Strand Mat

Woven Roving

Fiberglass Tissue Mat

Fiberglass Needled Mat

Fiberglass Thermoplastic Item

FRP Products

SMC Products

Fiber Glass Machines

Quality Assurance

Fiber Glass Machines

Shipping & Storage

Unless otherwise specified, the fiberglass products should be in dry, cool and moisture-proof area. Room temperature and humility should be always maintained at 15-35℃ and 35%-65% respectively.

Packaging

Fiber Glass Machines

Application

The products have broad application prospects in automobile, Locomotives, aerospace, marine, windmills, building and other industries.

Fiber Glass Machines

Our Services

Your inquiry will be replied within 24hours
Free sample

Fiber Glass Machines

FAQ

1.Moq:1000kgs
2.Delivery time:15days after confirm order
3.Payment term:T/T 30% deposit in advance,70% balance before shipment date.
